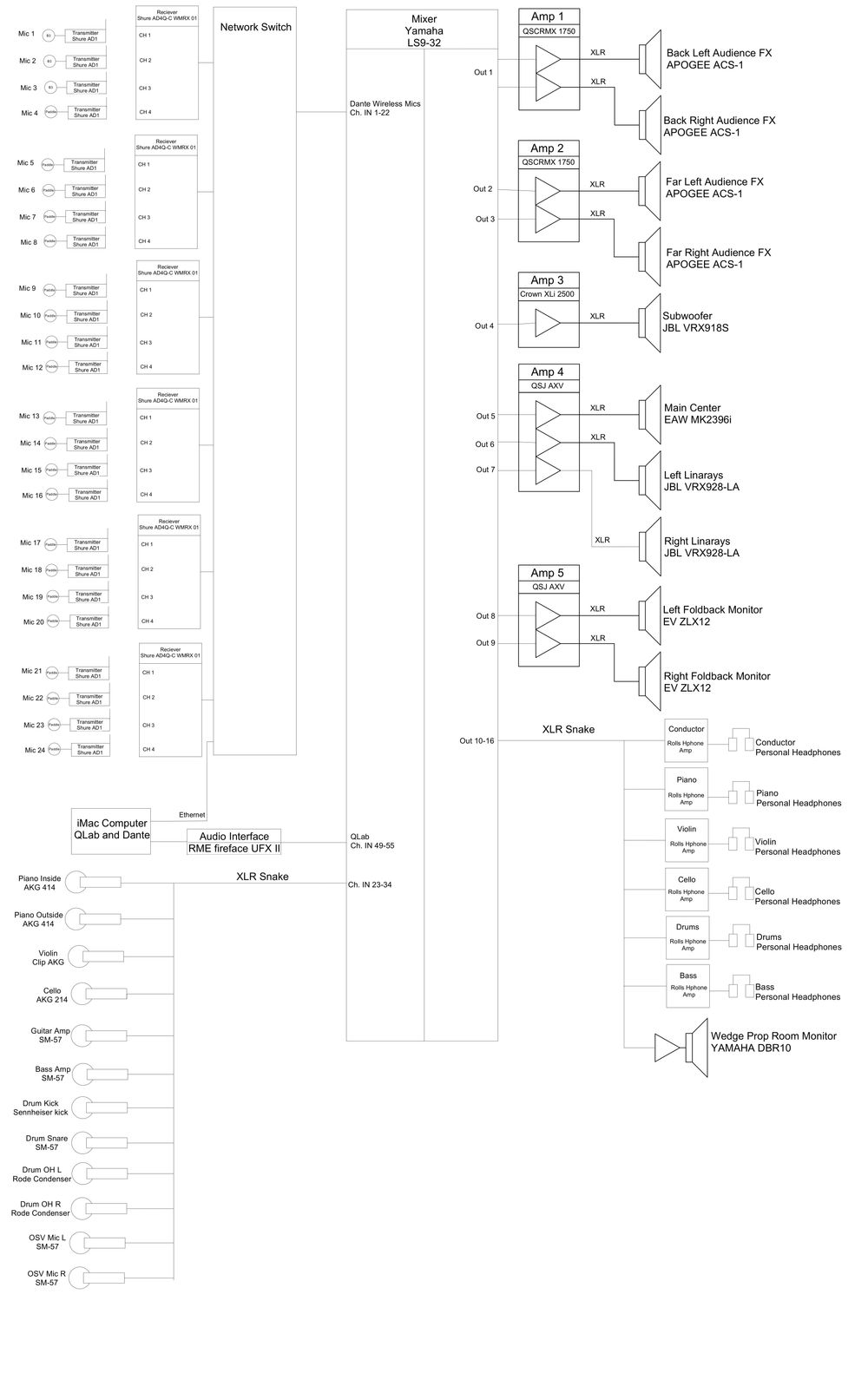

Signal Block Diagram
In PIeces - babcock theater, 2022
An SBD built in Vectorworks. We had a full cast and a six-person band, and each instrument required at least one microphone and their own in-ear monitor that we mixed according to their preferences. This shows the set-up for all of the physical equipment in the theater and we referenced it frequently.

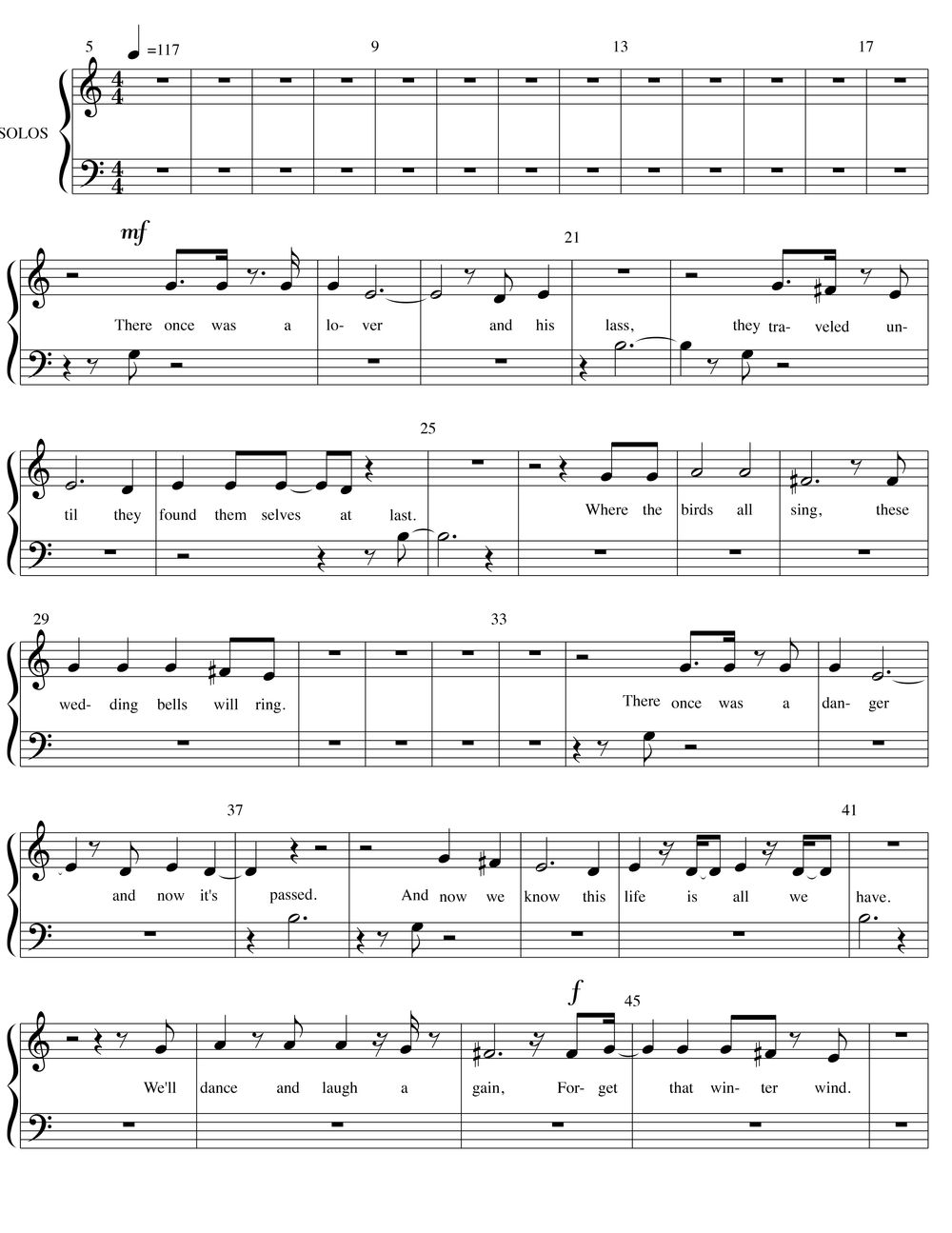

Score Page
As You Like It - University of utah, 2023
This is a soloist page out of the Finale of As You Like it. Individual scores were made for each singer - or group of singers - for ease of rehearsal and teaching. This was composed out on Logic Pro and delivered in digital and physical copies to the cast.

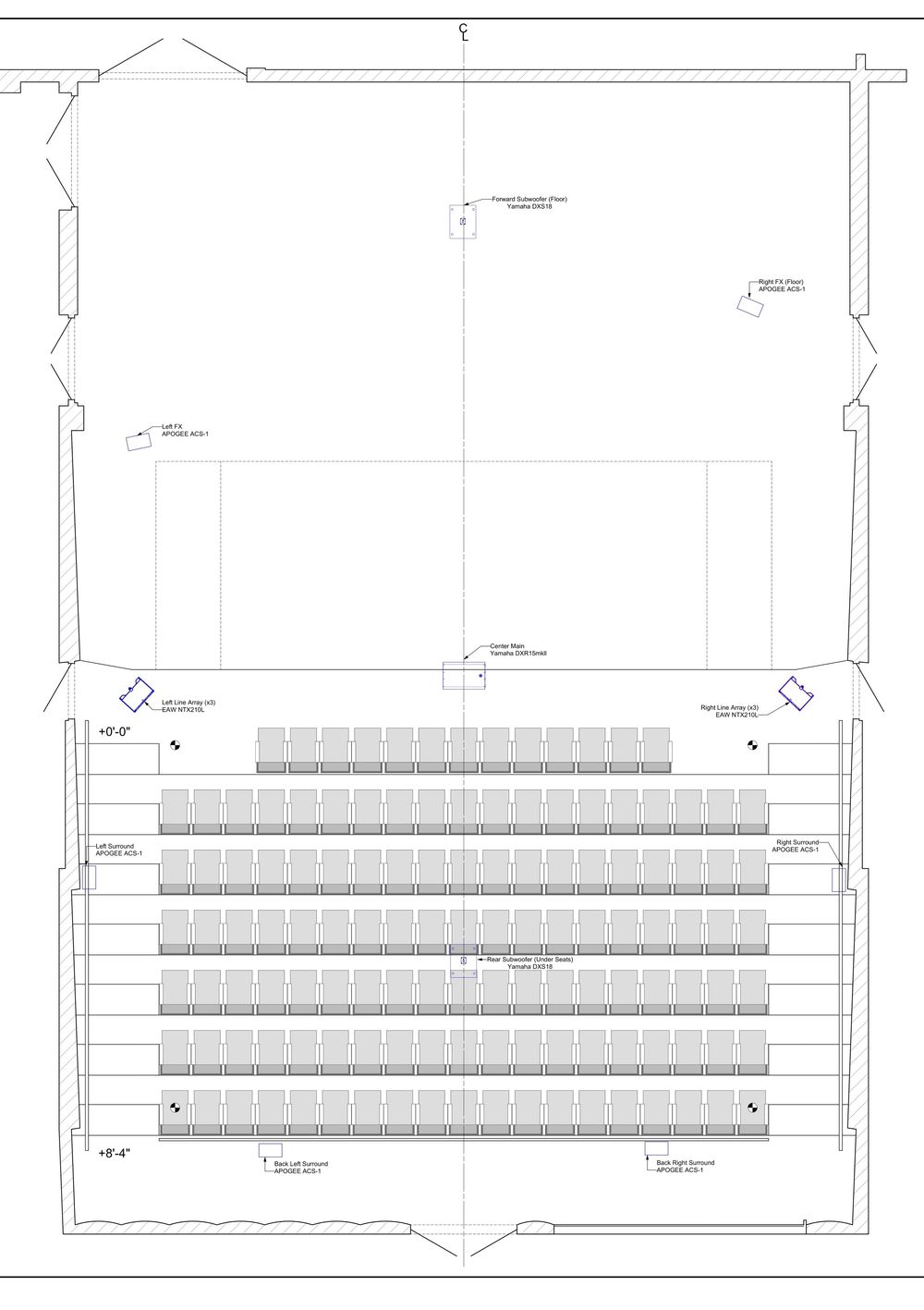

Ground Plan
She Kills monsters - babcock theater, 2022
A ground plan built in Vectorworks, with an imported image of the theater and all the necessary speaker placements. Individual speaker specs were found so the correct ones could be purchased and placed.
